Fishroom / Filtration room
|
|||
|
Note items such as Fan mounted on ceiling to cool ballasts

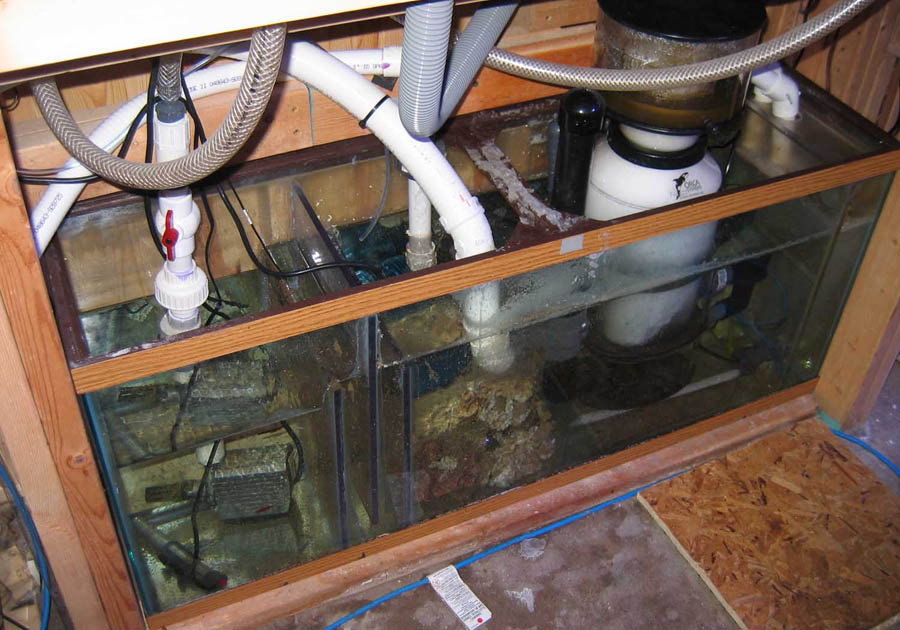

Sump is a standard 55g AGA modified with baffles Mag-drive 12 return pump in left chamber, Quiet One 3000 pump in center chamber sending water to Remote Refugium Large PVC line in front of center section is Refugium return

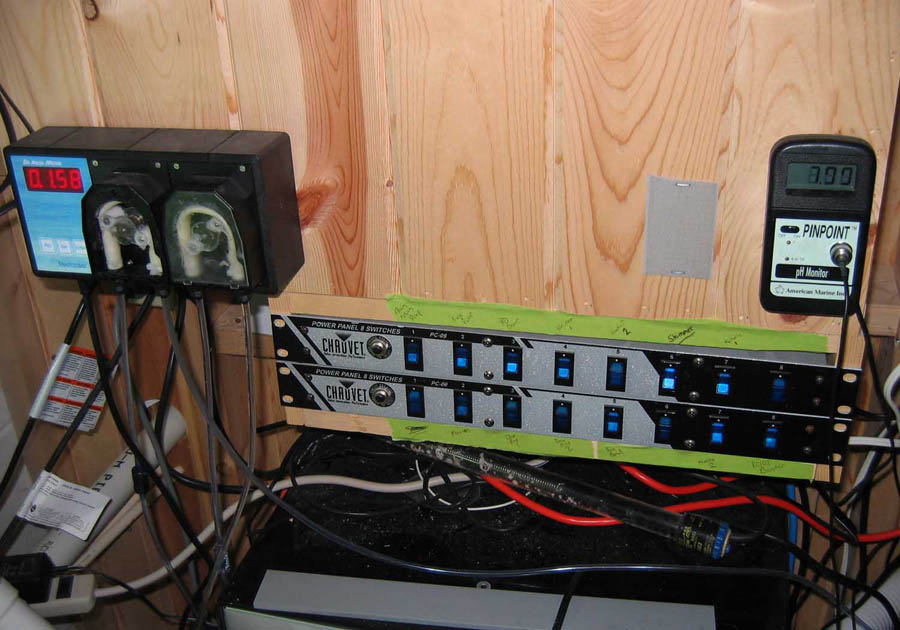

Auto Top-off on left (Reefdoser twin) Switched power strips in center PH monitor on right side

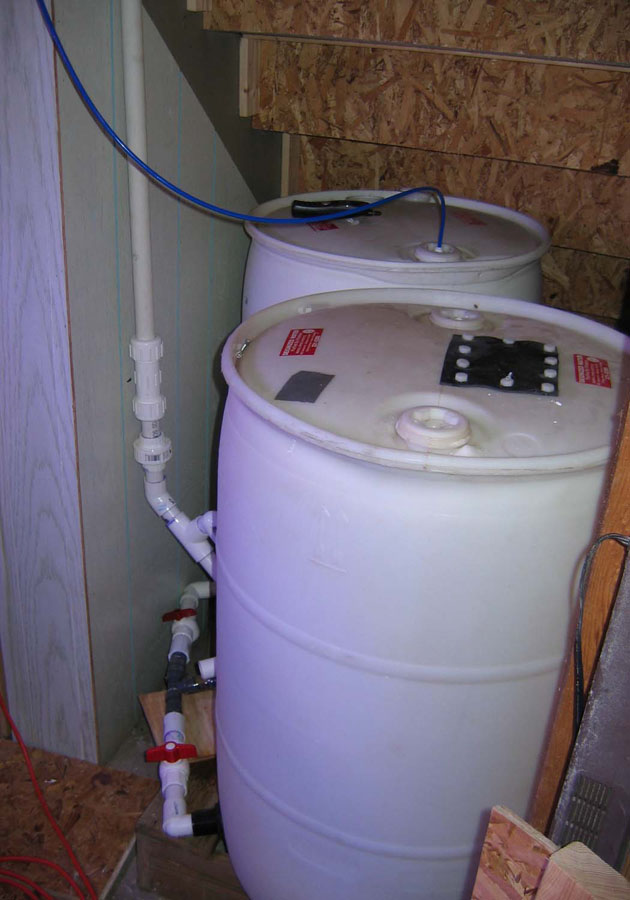

All RO/DI water is stored In 55g Drums

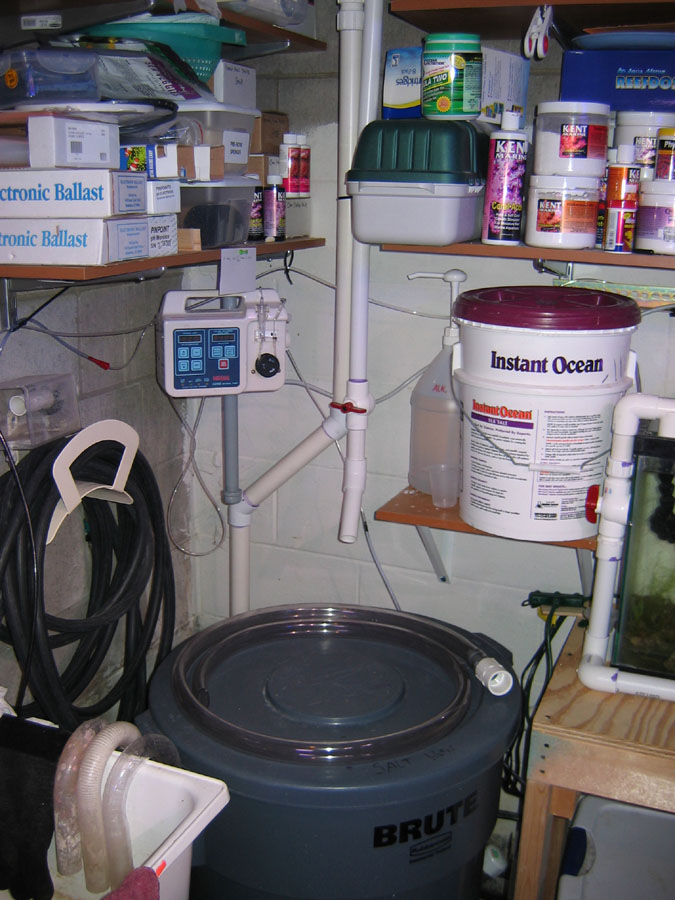

Saltwater mixing Barrel, along with dosing pump can be seen in this photo Notice the 1" PVC line with valve, brings fresh RO/DI from storage barrels, and can be dumped directly into salt barrel, or hose attached for filling top-off storage |

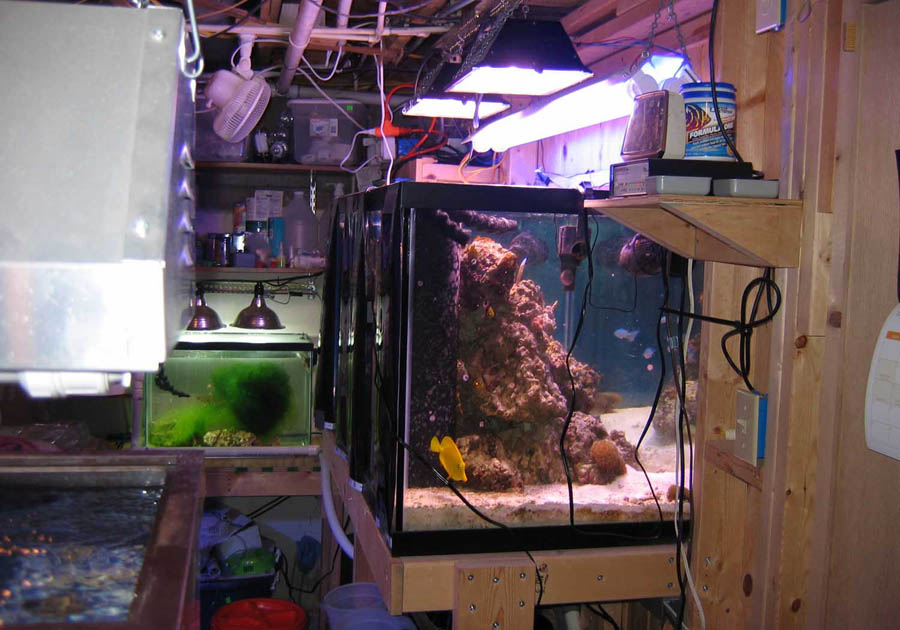

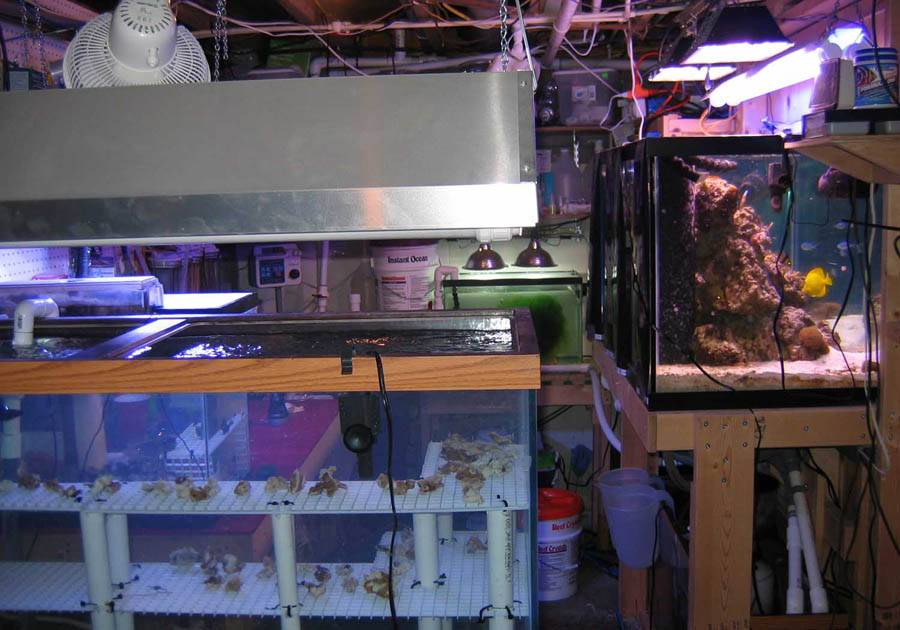

General layout of the fishroom is shown Prop system in front on left side of photo, Display tank on right side built in wall

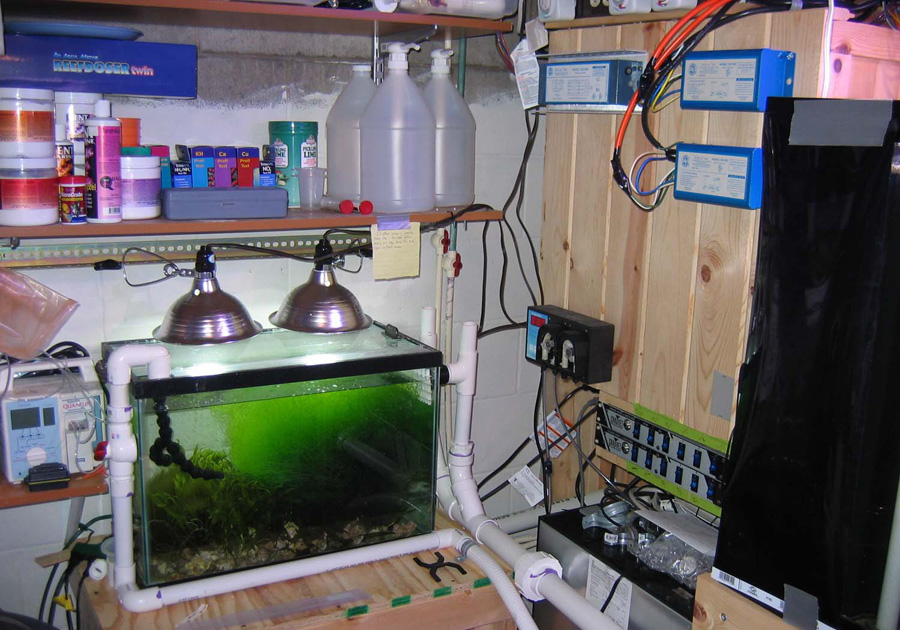

Remote Refugium, switched powerstrips, auto top-off system lighting ballasts as well as lighting for Refugium is shown

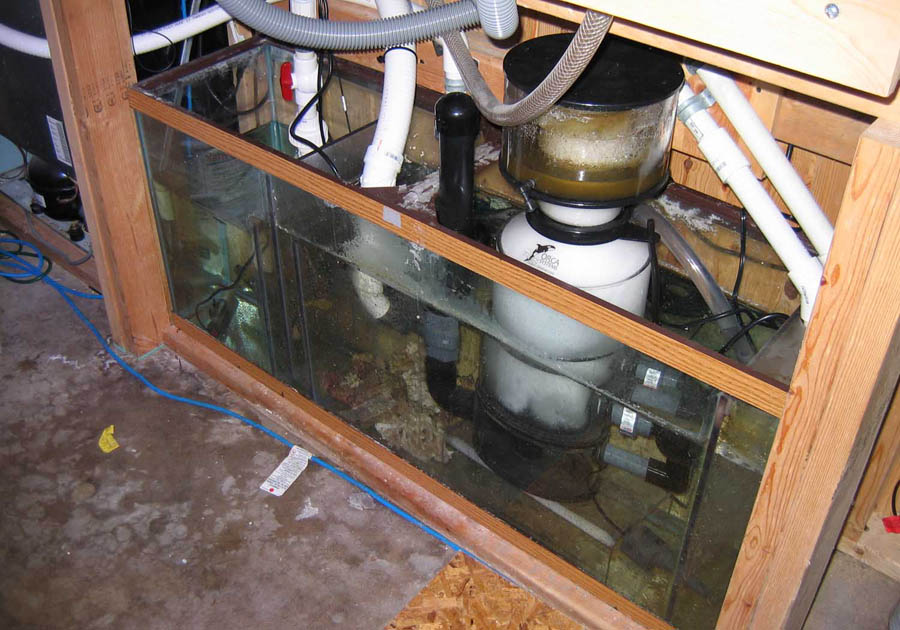

Return section on left, skimmer section on right/center Overflow return from tank on far right side

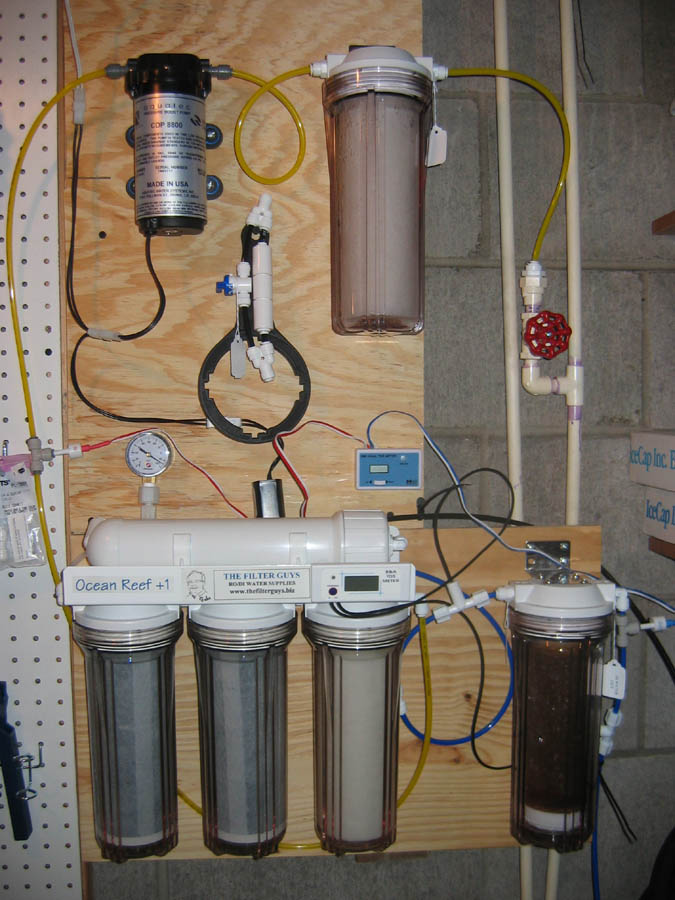

All water used in all Tanks comes from a "the Filter Guys" 6 stage RO/DI unit, with Pre-filter, Booster pump and Automatic flush valve Dual TDS meters are also shown

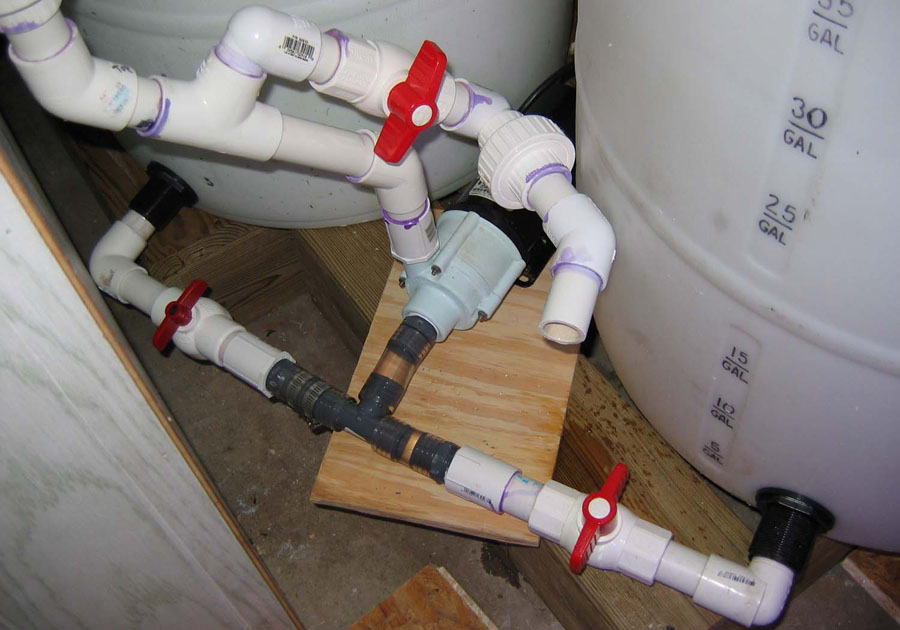

RO/DI water is pump up and over to the saltwater mixing area Note valve set-up Pump can draw from either barrel, and water can also be taken directly from barrels
|
|
|
